Outdoor Post-top Extended Lighting Unit '396/417/432'–16E2"
- Maximal bulb power (HID) 400 W, rated lumen output 40,000 Lm.
- Pole size: top end spigot/tenon dia.: 76mm/3in.; recommended height: 3.30...4.20 m / 11...14 ft.
Details and 'blue prints' are given for main components.

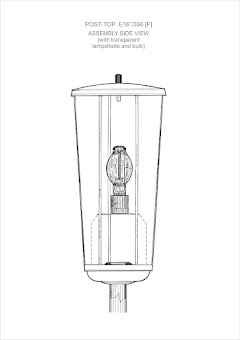

Assembly Side-view - Appearance
1.1 – Pole-Fitters: https://lightcommunitiesdevelopment.blogspot.com/p/post-top-fitters-dn-76-300.html
1.2 – Lampshade Fitters - Dimensional Details
2 – Lampshades
– Lampshade - Outline –
Lampshade - Dimensional Details
3 – Headshields - Dimensional Details
7 – Head Nuts - Dimensional Details
9 – Fixing Flange - Dimensional Details
