Post-top Fitters and Cages – DN-76 / 3.00"



PAGE UNDER CONSTRUCTION

COMPONENTS:

1.1 – Pole Fitter

4 – Rods

5 – Head Disk

8 – Fixing Frame

1.1 – Pole-fitter S200-6H166-3R162-O138-76 – 3 rods, 6 fixing screw
 > Cast Aluminium alloy

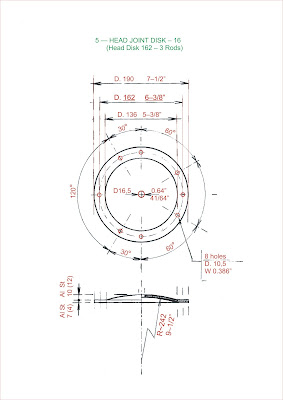

5 – Head Disk – Dimensional Details:

1.1 – Pole-fitter 222-6H197-5/6R157-O162-76U – 5/6 rods, 3 fixing screw & U-bolt
 > Cast Aluminium alloy

5 – Head Disk - Dimensional Details:

8 - Fixing Frame - Dimensional Details

1.1 – Pole-fitter 185-6H155/160-3R132-O132-76 – 3 rods, 3 fixing screw
 > Cast Aluminium alloy

5 –  Head Disk - Dimensional Details
